FM Antenna & FM antenna array systems
OMB Broadcast manufactures and markets FM antennas and FM antenna array systems, offering both narrow band and broad band options. Our antennas can operate in circular or vertical polarization, with capacities ranging from 600W to 30KW. All our systems are made of stainless steel to ensure high durability and long-lasting performance. Additionally, we deliver complete radiation systems to our customers, including interconnection cables, power dividers and tower mounting hardware. OMB Broadcast also offers custom made FM antenna array systems tailored to meet the specific needs of our clients.
Circular Polarization Tuned Narrow Band

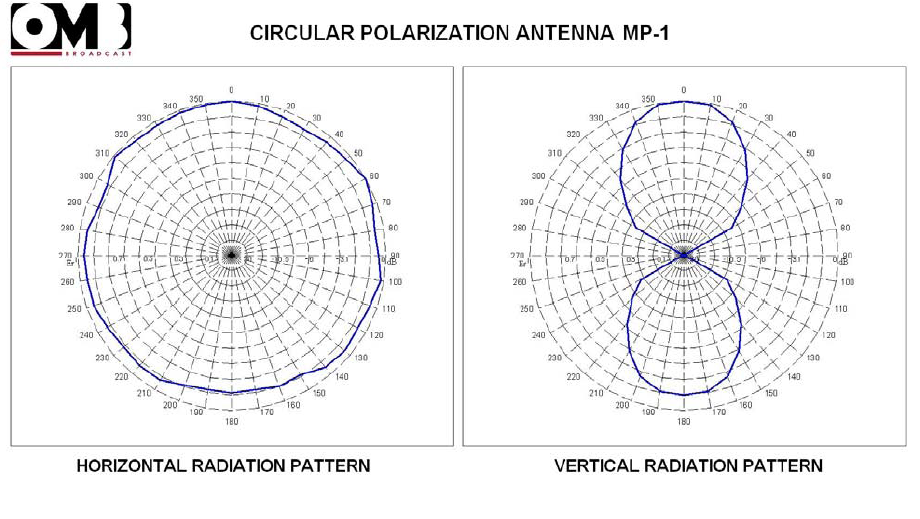

The circular polarization MP antennas are the cheapest antennas among their kind, without affecting their manufacturing quality. This 600W continuous power antenna can be factory-adjusted (88–108 MHz), although it can be readjusted later, if needed. It has an N(F) input connector and is made of stainless steel to operate in extreme environmental conditions. This antenna is perfect to be used as a second antenna or as a security system antenna. DC grounded potential antenna.
Antenna Systems Available
| Model | Antennas | Max Power * | Gain |
|---|---|---|---|
| MP-1 | 1 | 600W | -3dBd |
| MP-2 | 2 | 1.2KW | 0dBd |
| MP-4 | 4 | 2.4KW | 3dBd |
| MP-6 | 6 | 3.6KW | 4.5dBd |
| MP-8 | 8 | 4.8KW | 6dBd |
* According to power divider.
Other antenna systems available. Please contact our sales department: sales@omb.com
Circular Polarization Tuned Narrow Band

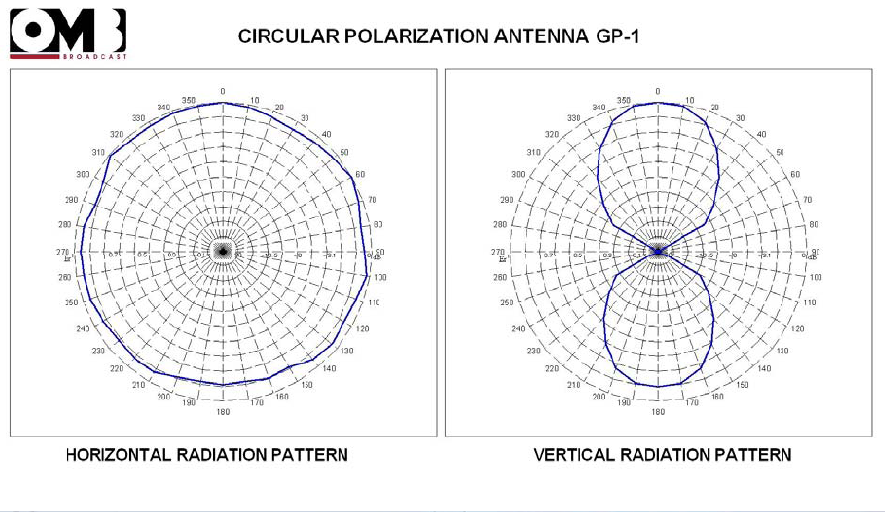

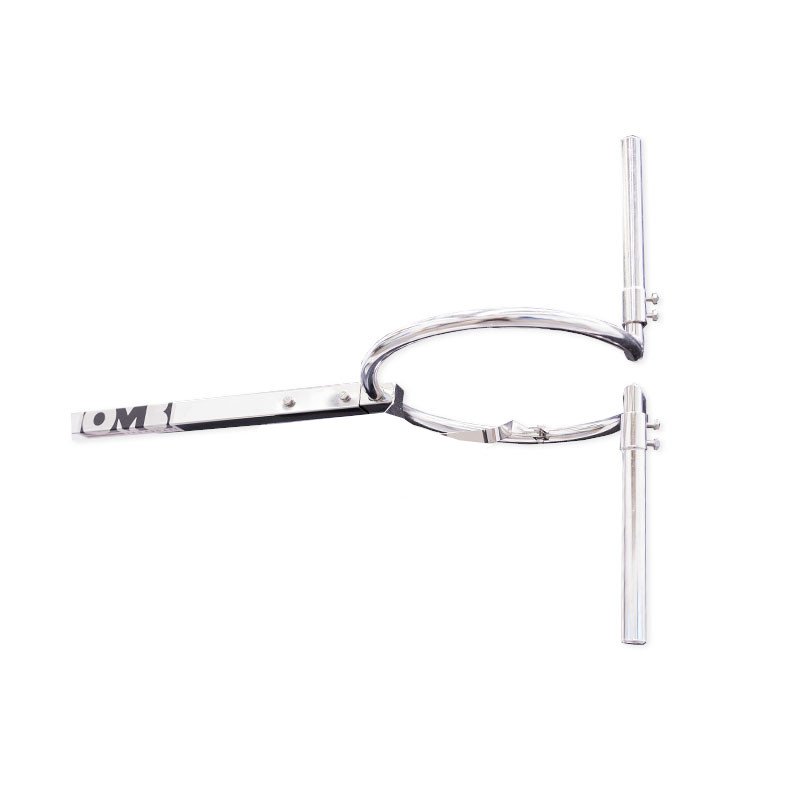

The circular polarization GP antennas are designed to maintain a continuous power of 1.5KW per element and are made of stainless steel to guarantee and maintain all technical features. This antenna can be factory-adjusted from 88–108 MHz, although it can be readjusted later, if needed. The GP antennas are recommended to operate in extreme environmental conditions. DC grounded potential antenna.
Antenna Systems Available
| Model | Antennas | Max Power * | Gain |
|---|---|---|---|
| GP-1 | 1 | 1.5KW | -3dBd |
| GP-2 | 2 | 3KW | 0dBd |
| GP-4 | 4 | 6KW | 3dBd |
| GP-6 | 6 | 9KW | 4.5dBd |
* According to power divider.
Other antenna systems available. Please contact our sales department: sales@omb.com
Circular Polarization Tuned Narrow Band

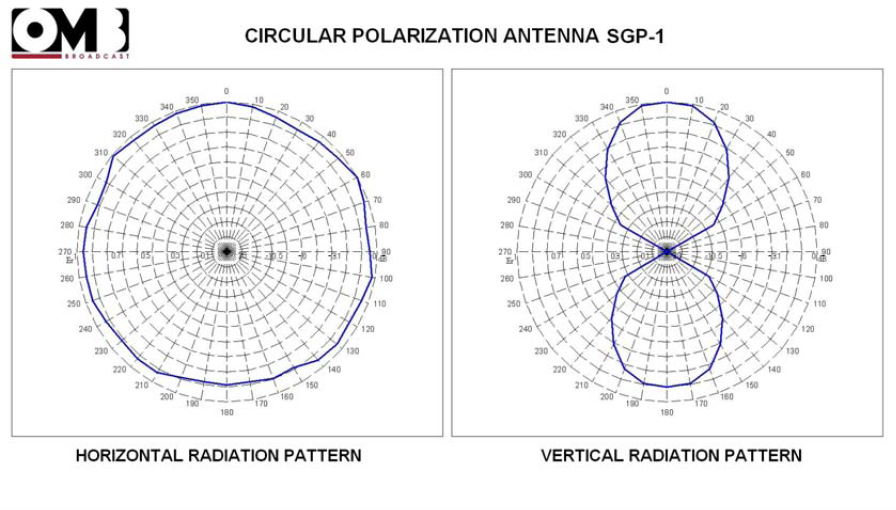

The circular polarization SGP antenna is designed to maintain a continuous power of 4KW per element and is specially recommended for radio stations that need high-efficiency, quality and lasting antennas. This antenna is made of stainless steel, so it can work in extreme environmental conditions without changing its technical features, and its internal lines are made of silver-plated brass. This antenna can be factory-adjusted from 88–108 MHz, although it can be readjusted later, if needed. DC grounded potential antenna.
Antenna Systems Available
| Model | Antennas | Max Power * | Gain |
|---|---|---|---|
| SGP-1 | 1 | 4KW | -3dBd |
| SGP-2 | 2 | 8KW | 0dBd |
| SGP-4 | 4 | 16KW | 3dBd |
| SGP-6 | 6 | 24KW | 4.5dBd |
| SGP-8 | 8 | 32KW | 6dBd |
* According to power divider.
Other antenna systems available. Please contact our sales department: sales@omb.com
Circular Polarization Broad Band Antenna

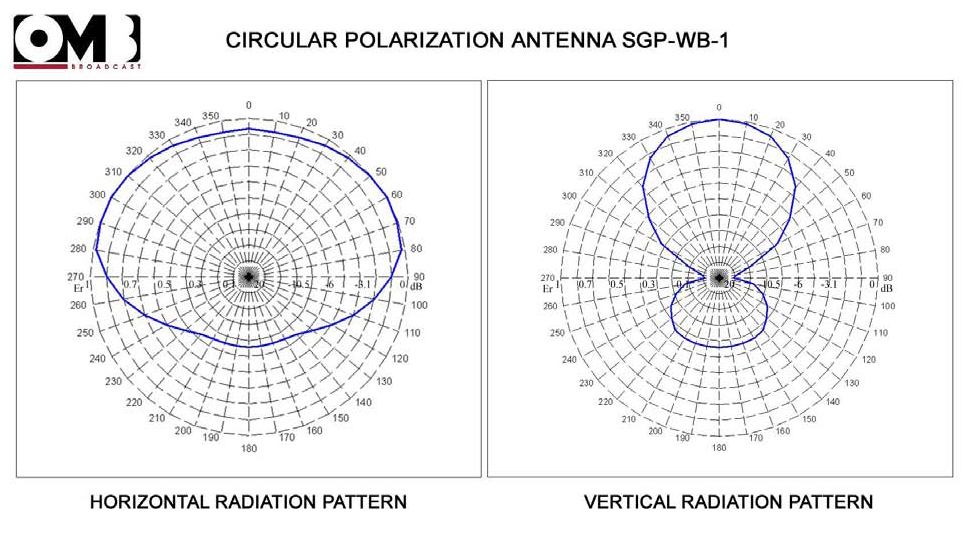

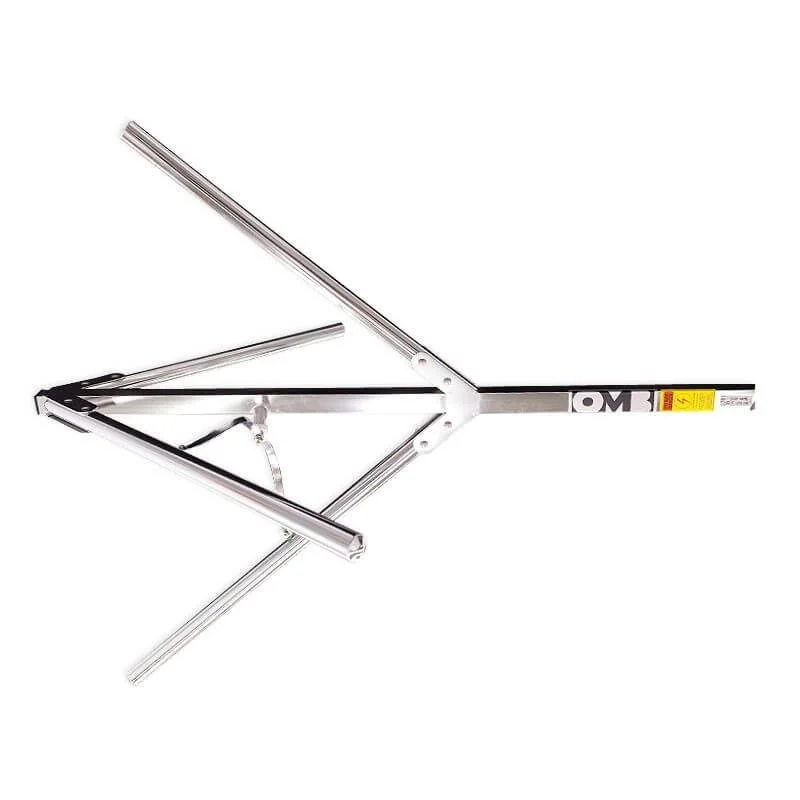

The circular polarization SGP-WB antenna is designed to maintain continuous power of 3KW–5KW per element. This broadband antenna is made of stainless steel, so it can work in extreme environmental conditions without changing its technical features. The SGP-WB antenna is fully foldable to save in freight cost. DC grounded potential antenna.
Antenna Systems Available
| Model | Antennas | Max Power * | Gain |
|---|---|---|---|
| SGP WB 1 | 1 | 3KW | -3dBd |
| SGP WB 2 | 2 | 6KW | 0dBd |
| SGP WB 4 | 4 | 12KW | 3dBd |
| SGP WB 6 | 6 | 18KW | 4.5dBd |
| SGP WB 8 | 8 | 24KW | 6dBd |
* According to power divider.
Other antenna systems available. Please contact our sales department: sales@omb.com
Vertical Polarization Broad Band Antenna

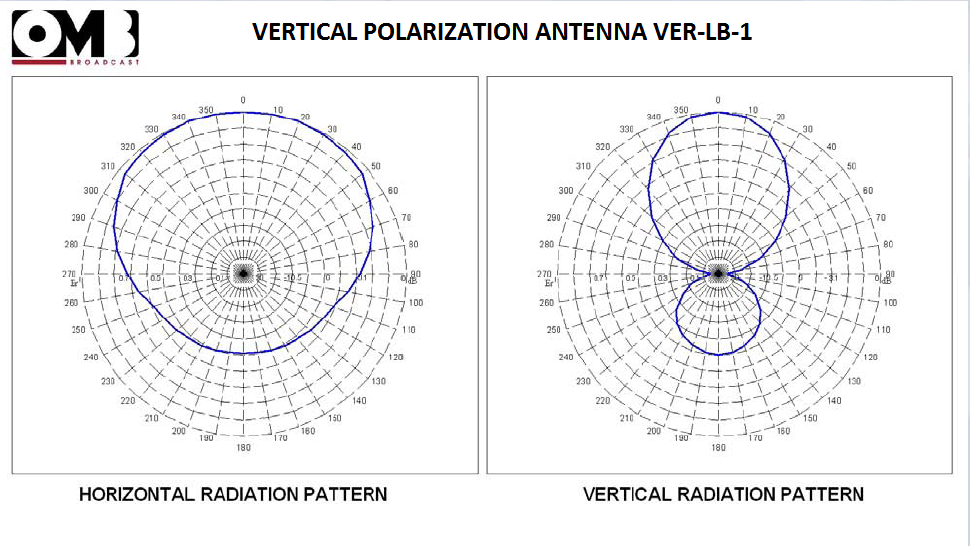

The wide band antenna VER LB is designed to maintain continuous power of 2.5KW–5KW per element and stands out for its high efficiency, durability and quality at a low price. This antenna is made of high-radiation stainless steel, which guarantees the incorruptibility of its technical specifications, and it is fully foldable to save in freight cost. DC grounded potential antenna.
Antenna Systems Available
| Model | Antennas | Max Power * | Gain |
|---|---|---|---|
| VER LB 1 | 1 | 2.5KW | 2dBd |
| VER LB 2 | 2 | 5KW | 5dBd |
| VER LB 4 | 4 | 10KW | 8dBd |
| VER LB 6 | 6 | 15KW | 9dBd |
* According to power divider.
Other antenna systems available. Please contact our sales department: sales@omb.com
Vertical Polarization Broad Band Antenna

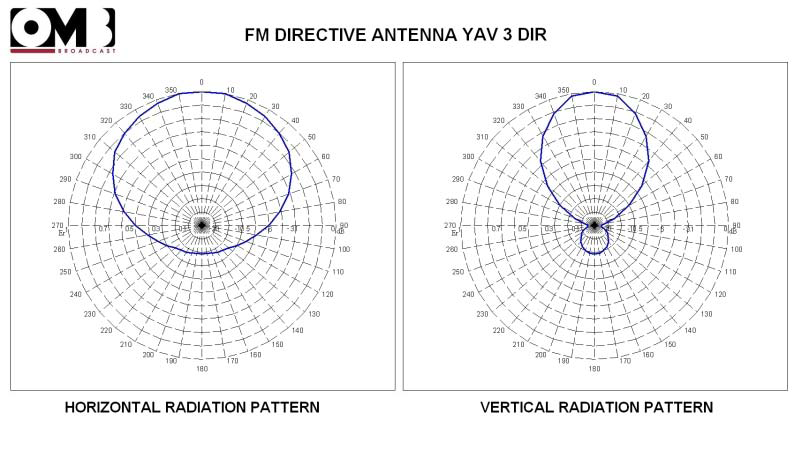

The three-element vertical polarization antenna, YAV 3 DIR, is a great choice to individually use in FM stereo systems, and it is remarkable for its high directivity and bandwidth while remaining stable. This antenna is made of high-radiation stainless steel and is designed to maintain continuous power of 5KW. The YAV 3 DIR antenna has an EIA 7/8" input connector and guarantees its technical features in extreme environmental conditions. DC grounded potential antenna.
Antenna Systems Available
| Model | Antennas | Max Power * | Gain |
|---|---|---|---|
| YAV 3 DIR 1V | 1 | 5KW | 4.5dBd |
| YAV 3 DIR 2V | 2 | 10KW | 7.5dBd |
| YAV 3 DIR 4V | 4 | 20KW | 10.2dBd |
| YAV 3 DIR 6V | 6 | 30KW | 11.7dBd |
* According to power divider.
Other antenna systems available. Please contact our sales department: sales@omb.com
Vertical Polarization Antenna up to 350W
(Easy to Adjust)

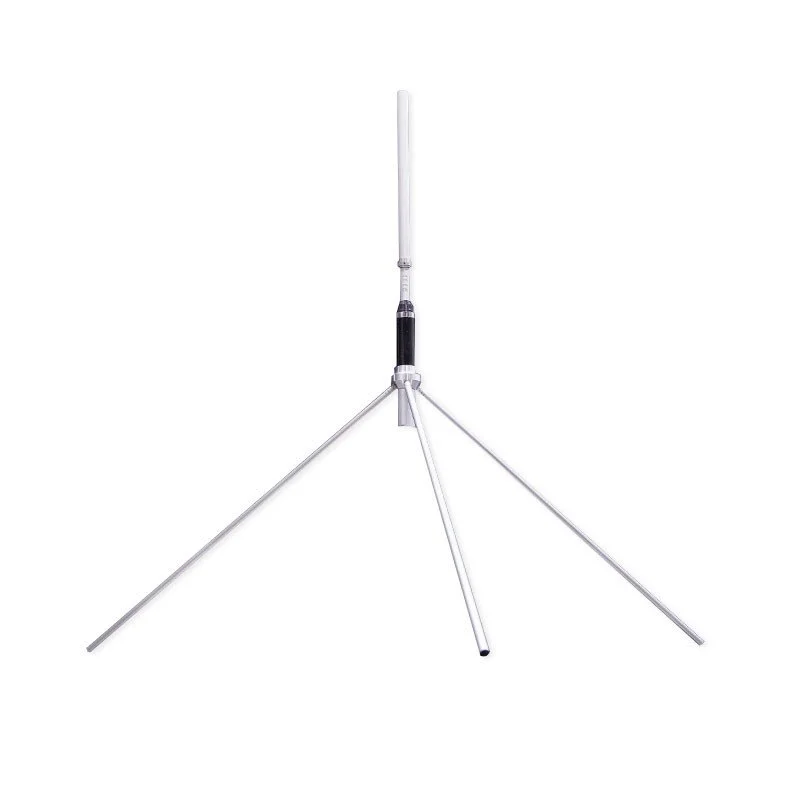

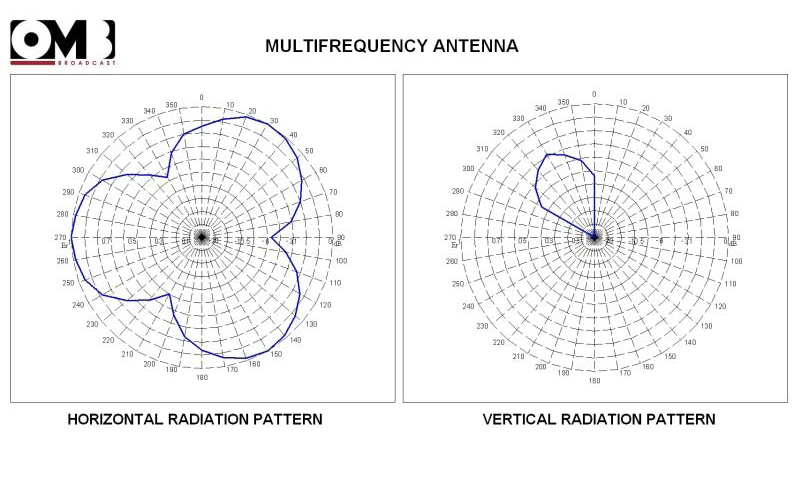

The vertical polarization antenna, MULTI FM, can be easily adjusted by the user. That is why it is recommended for low-power stations that do not yet have an assigned transmission frequency.
Vertical Polarization Broad Band Antenna

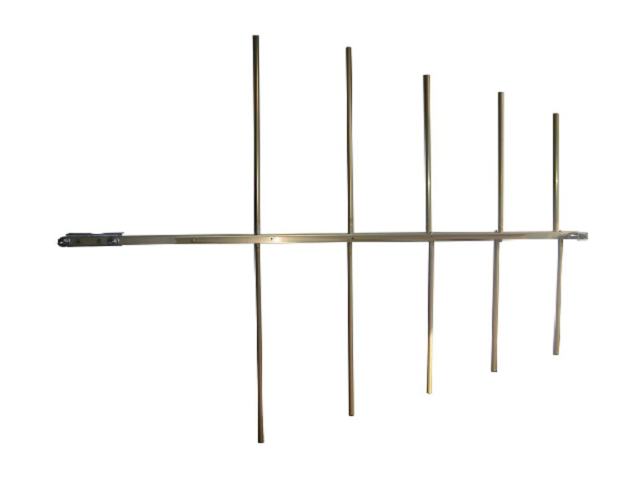

The vertical and horizontal polarization LOGARITHM PERIODIC 5 FM works in the 87.5–108 MHz frequency range with 6dBd gain. This low-cost antenna is remarkable for its high directionality, proven inalterability, high gain and light weight. It has an N(F) input connector and is made of anodized aluminum with stainless steel clamps, giving it excellent weather resistance. DC grounded potential antenna.
