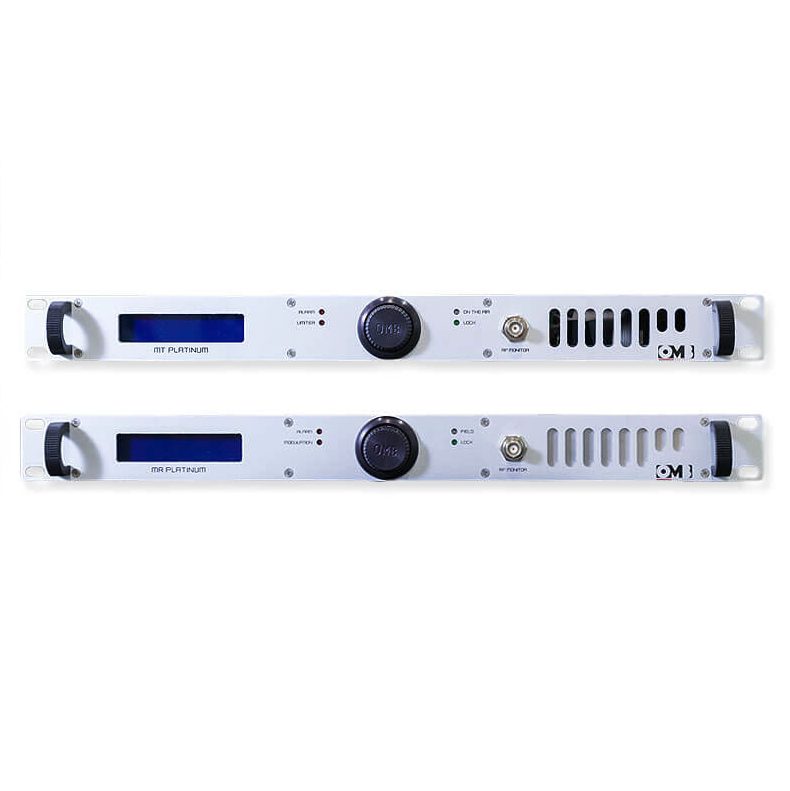

ANALOG STL>1GHz MT-MR PLATINUM
-
The MT/MR PLATINUM >1GHz (Studio-to-Transmitter Link) is composed by a transmitter and a receiver of STL. The 5W transmitter is externally synthesized in 10MHz sub-bands and it is controlled by a 100KHz steps microprocessor. Through the LCD display, users can check the following parameters: frequency (6 digits), forward and reflected power, and modulation level. It has balanced mono and stereo (MPX) inputs. The double conversion receiver is externally synthesized and it has the same information features as the transmitter; it has balanced mono and stereo (MPX) outputs.
-
ANALOG STL<1GHz MT-MR PLATINUM
-
The MT/MR PLATINUM FM (Studio-to-Transmitter Link) is composed by a transmitter and a receiver of STL. The (200-960MHz) transmitter is externally synthesized in 20MHz sub-bands and it is controlled by a 25KHz steps microprocessor (10KHz optional). Through the LCD display, users can check the following parameters: frequency (6 digits), forward and reflected power, modulation level and pilot signal (19KHz) in transmission. It has balanced mono, stereo (MPX) and 3 SCA inputs, together with SWR fold back protection. The double conversion receiver is externally synthesized and it has the same information features as the transmitter; it has balanced mono, stereo (MPX) and 3SCA outputs.
-
